Manufacturing

Manufacturing Overview

Build a paperlesspaper device from parts to finished frame.

GitHubpaperlesspaper/paperlesspaper-hardware

82

The hardware repository contains the PCB, 3D, fixture, and laser files. These pages cover the workshop side:

  1. Get the parts.
  2. Make the 3D prints, backplane, and passepartout.
  3. Join the display and PCB.
  4. Put everything into the frame.
  5. Flash and test the device.
  6. Pack it.

Do not mix versions

The display, PCB, printed parts, and firmware must belong to the same model and hardware version.

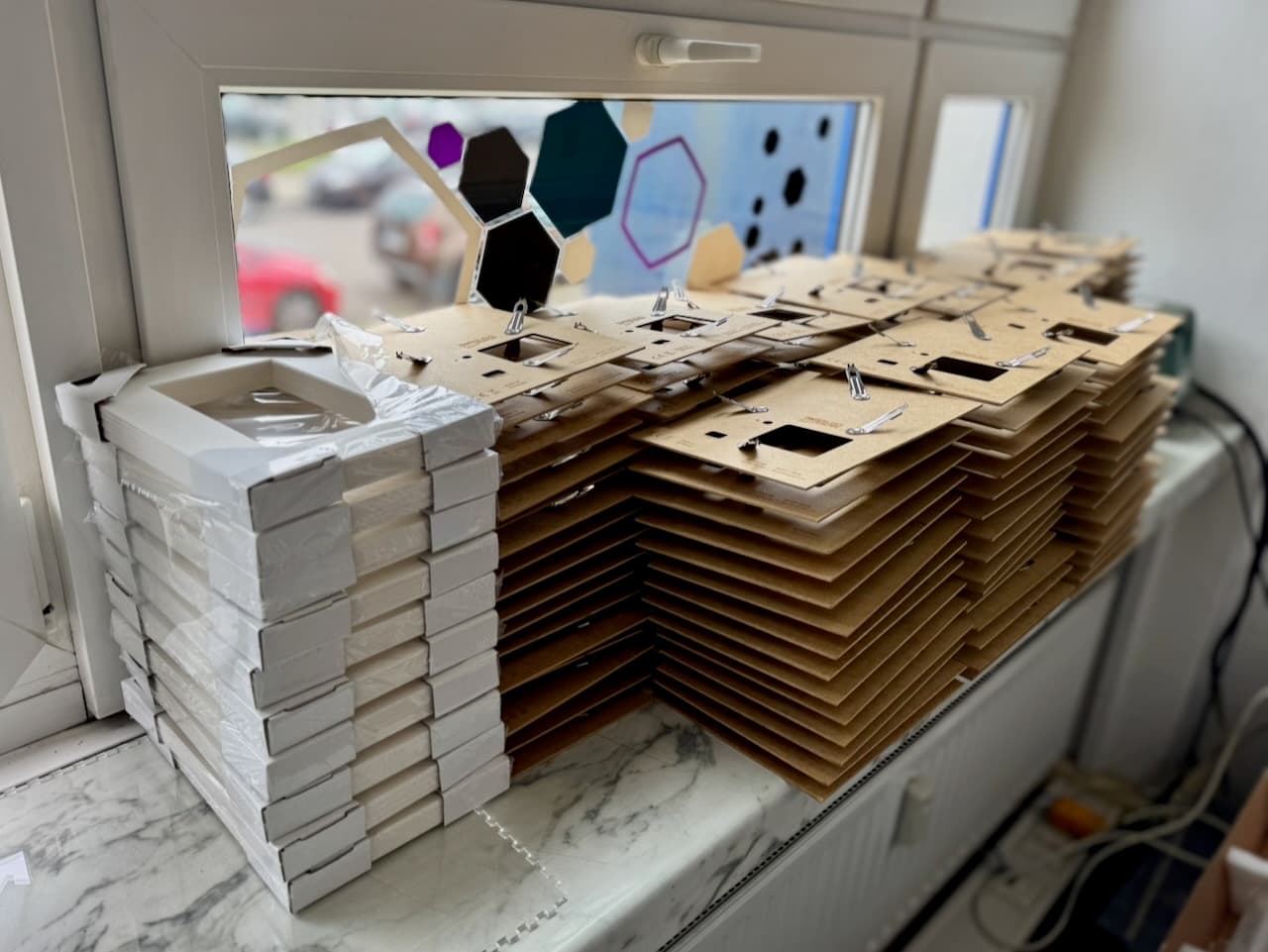

Manufactured paperlesspaper hardware

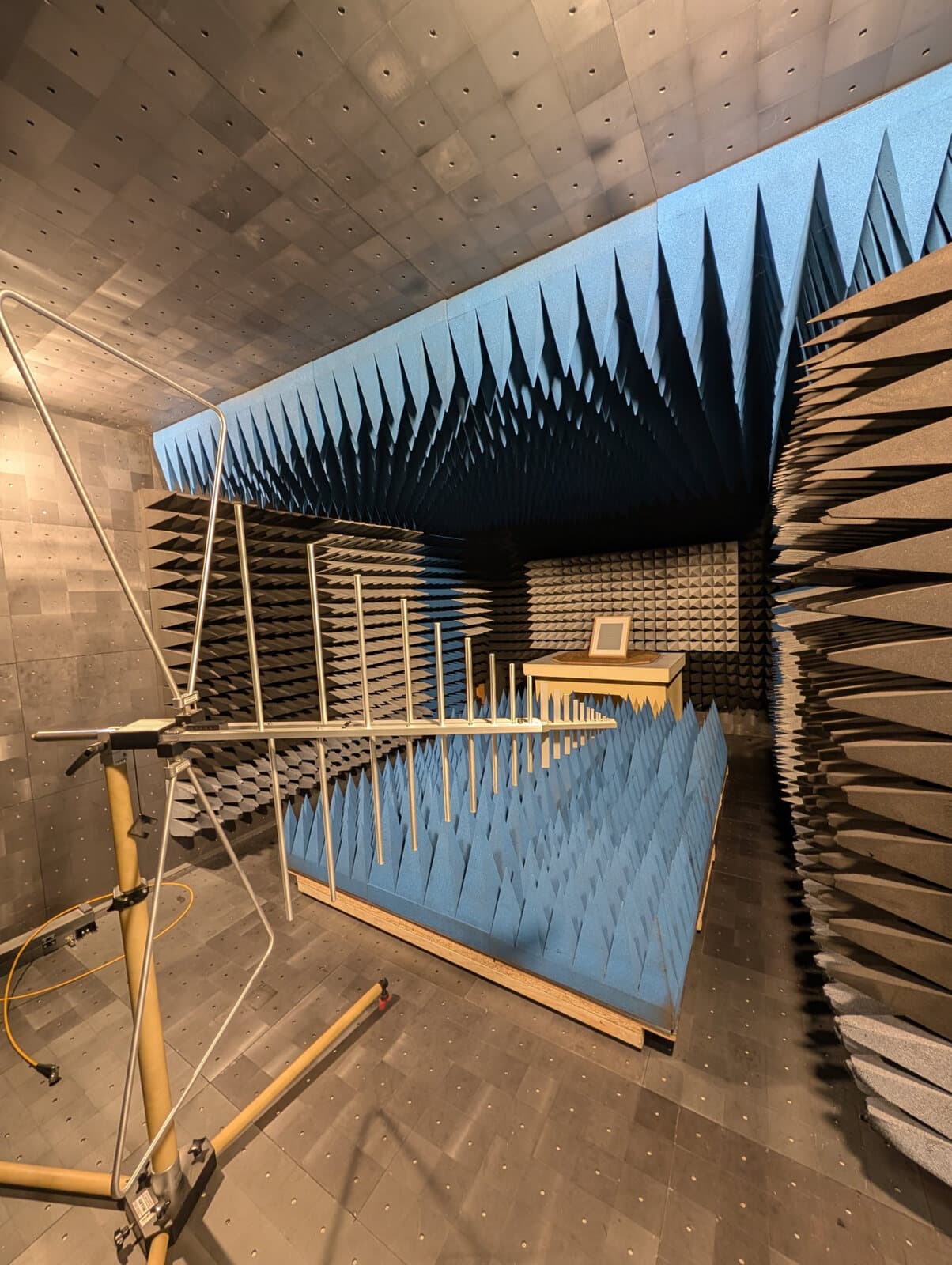

OpenPaper device inside an anechoic chamber for EMC testing
